Manual peeling machines
FRUIT PEELER
Fruit is positioned on a central pivot. As the handle is turned the fruit is revolved over a stationary knife and the peel is removed.
PRICE CODE: 1
MAQUINARIAS Y AUTOPARTES EL
LATINO
Av Grau No 1191
LIMA
PERU

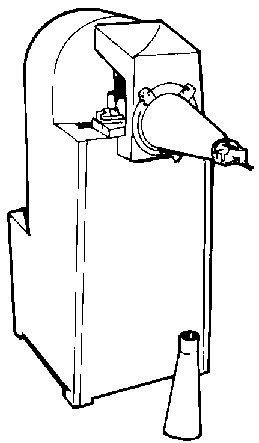

PINEAPPLE SIZER AND CORER
Pineapples can be peeled and cored in the following way. The pineapple is trimmed at both ends and placed into a V-shaped spring-loaded trough as the operator centres the coring tubes. The pineapple is held with the left hand and the manual lever is moved until the coring tube has pierced the fruit. The foot pedal is depressed which raises the stop bar holding the fruit in a coring position. Throughput: 600-720 operations per hour.
PINEAPPLE SIZER AND CORER
PRICE CODE: 2
FMC CORPORATION
Machinery International Division
P.O. Box 1178
SAN JOSE
California 95108
USA
BEST APPLE PARER (PEELER)
This small, sturdy apple peeler is hand operated. The apple is removed at the end of each cycle. The tool is fabricated from cast iron with a nickel plated apple spike and a replaceable steel blade. The unit will clamp onto surfaces up to 3.2cm thick. Throughput: 360 apples per hour.
PRICE CODE: 1
LEHMAN HARDWARE & APPLIANCES INC.
P.O. Box 41
4779 Kidron Road
Kidron
OHIO 44636
USA
Powered peeling machines
POTATO PEELER
This model has a 0.37kW (0.5hp) electric motor. One cycle takes 3-4 mins. Capacity: 110kg.
PRICE CODE: 3
GARDENERS CORPORATION
6 Doctors Lane
PB No. 299
NEW DELHI 110 001
INDIA
POTATO PEELING AND WASHING MACHINE
This machine has a stainless steel body, cast iron base and a water pipe for washing potatoes. It can be fitted to the table or the floor. Requires: 220/230 50Hz, single-phase electricity supply. Capacity: 100, 200 kg per hour. 0.19kW (0.25hp) and 0.37kW (0.5hp) models are available.
PRICE CODE: 2
IQBAL ENGINEERING CO.
114 Gulberg Road
LAHORE
PAKISTAN
LYE-TYPE PEELER SCALDER
This machine loosens the skins of root crops and some fruits. The unit is made from galvanized material and is equipped with a steam heating coil, quick opening drain, rinsing compartment, and rinse basket. The basket containing the product is placed in the lye peeling section. It is then transferred to the rinsing compartment after a few minutes (the actual time depends on the product being peeled).
PRICE CODE: 2
FMC CORPORATION
Machinery International Division
P.O. Box 1178
SAN JOSE
California 95108
USA
ELECTRIC POTATO PEELER
This stainless steel, bench top potato peeler has a motor and a V-belt which drives a spindle inside a container. The potatoes are rotated against the abrasive walls. There is a hose entry for cleaning water and an exit for potato peelings.
PRICE CODE: 2
MITCHELL AND JOHNSON PVT LTD
P.O. Box 966
BULAWAYO
ZIMBABWE

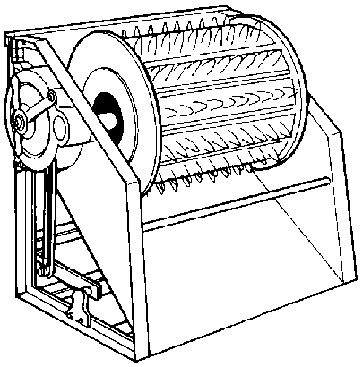

ROOT CROP PEELER/WASHER
This machine has a peeling drum with a carborundum surface to peel the food. A water spray continuously removes loosened peel from the machine. Processing is done in batches of 15-20kg. Throughput: 100kg per hour of peeled roots.
PRICE CODE: 2
VISAYAS STATE COLLEGE OF AGRICULTURE
6 Lourdes Street
Pasay City 3129
PHILIPPINES
Powered peeling machines also manufactured by:
THAKAR EQUIPMENT CO.
66 Okhla Industrial Estate
NEW DELHI 110 020
INDIACRYPTO PEERLESS LTD
Bordesley Green Road
BIRMINGHAM
B9 4UA
UKINDUSTRIAS TECHNICAS 'DOLORIER'
Alfredo Mendiola 690
Urbanizacion Ingenieria
LIMA
PERU
This equipment is used to measure the acidity of foods and comes in two basic types: hand-held, electronic meters and larger electric bench-top pH meters. The hand-held type is cheaper and easier to use than the bench models but is less accurate.
BATTERY-OPERATED pH METER 323
This portable pH meter has a range of pH 2-12, with 0.1 pH accuracy.
PRICE CODE: 1
JAGTIANI also manufacture the following pH meters:
· DIGITAL pH METER 353 (mains operated)· EXPANDED SCALE pH METER (lower scale has 140 divisions)
· pH METER SYSTRONICS TYPE 325 (low cost pH meter measuring pH and mV readings).
· pH METER SYSTRONICS TYPE 324 (supplied with stabilized power supply and a drift-free DC amplifier)
J T JAGTIANI
National House
Tulloch Road
Apollo Bunder
BOMBAY 400 039
INDIA
DELTA 250 RESEARCH pH METER
This measures pH, mV, °C and ion activity. Maximum and minimum limits can be set for any mode, and an alarm will sound if a sample falls outside the required range. Up to five samples can be measured simultaneously via an optional electrode selector.
PRICE CODE: 3
A pocket sized pH meter is also available (the Ciba Corning pH meter).
THE NORTHERN MEDIA SUPPLY LTD
Sainsbury Way
HESSLE
HU13 9NX
UK
pH METER DIGITAL
This is a self-contained and portable instrument designed for accurate pH reading. The meter has an LED display for easy reading. Range: pH 0-14. Accuracy: pH +/- 0.01 unit, mV +/- 0.1% of full scale. Temperature compensation: 0-100°C. Power supply: 230V.
PRICE CODE: 2
ESSCO FURNACES (P) LTD
127 Velachery Road
Little Mount, Saidapet
MADRAS 600 015
INDIA
DIGITAL pH METER
This meter measures pH value within the range of pH 0-14 with a resolution of pH 0.01 units. Temperature can be compensated for manually on the LCD display. The unit is powered by a standard 9V battery and comes as a kit containing the instrument, pH electrode and buffers.
PRICE CODE: 2
ELECTRONIC TEMPERATURE
INSTRUMENTS
52 Broadwater Street East
WORTHING
BN14 9AW
UK
pH meters are also manufactured by:
WEST METERS LTD
Dept Kom
Western Bank Industrial Estate
WIGTON
CA7 9SJ
UKTHE SCIENTIFIC INSTRUMENT CO. LTD
6 Tej Bahadur Sapru Rd
ALLAHABAD
211001
INDIAPHILIP HARRIS SCIENTIFIC
Scientific Supplies Co.
618 Western Avenue
Park Royal
LONDON
W3 0TE
UKGALLENKAMP EXPRESS
Belton Road West
Loughborough
Leicestershire
LE11 0TR
UK
53.1 Fruit and vegetable presses
HYDRAULIC CASSAVA PRESS
This presses grated cassava before or after fermentation. The machine has a high- and low-speed ram operation. There are also two cages so that when one is being loaded, the other is being pressed. During the pressing process, starchy water flows into a container. 0.5 tonnes of cassava can be processed per hour.
PRICE CODE: 2
AGRICULTURAL ENGINEERS LTD
Ring Road West Industrial Area
P.O. Box 12127
ACCRA-NORTH
GHANA
PARALLEL BOARD PRESS
This manual gari press consists of two solid parallel boards. Pulp-filled sacks are placed between the boards and they are then screwed together to create a uniform pressure on the sacks.
PRICE CODE: 1
TECHNOLOGY CONSULTANCY CENTRE
University of Science & Technology
KUMASI
GHANA
FRUIT PRESSES
The fruit is placed into the machine via a hopper. A handle, attached to the machine, is turned to press the fruit and extract the juice. Models available: FPM12, FPM20.
FRUIT PRESSES
PRICE CODE: 1

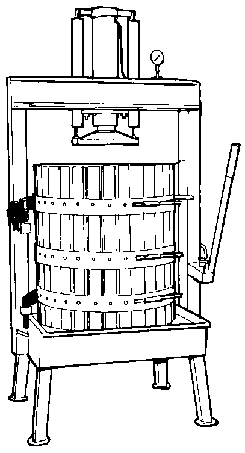

HYDRAULIC VINE PRESSES
These manually-operated presses extract juice from soft fruit, e.g. grapes. Hydraulic pressure is used to extract the juice. Various vine presses are available.
HYDRAULIC VINE PRESSES
PRICE CODE: 2
Both the above presses manufactured by:
SALINA GEPGYARTO ES
TAMITESTECHNIKA
Vallat
H - 2490 Posztaszblocs
Iskola V.1 PF10
HUNGARY
HAND SCREW BASKET PRESS
This press has a steel frame, wooden tray and basket, and extracts juice from soft fruits.
PRICE CODE: 2

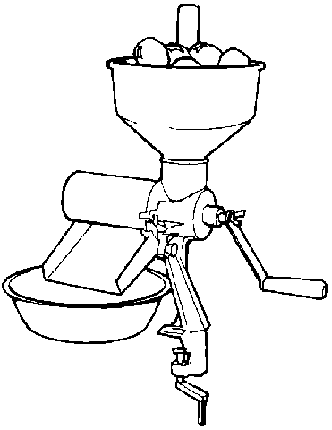

TOMATO AND GRAPE CRUSHER
This machine will crush tomatoes and other soft fruits. The hopper is suitable for hand or pulley drive.
PRICE CODE: 3
Both the above manufactured by:
NARANGS CORPORATION
25/90 Connaught Place
Below Madras Hotel
NEW DELHI 110 001
INDIA
HYDRAULIC BASKET PRESS
This basket press comprises a cylindrical pressing block lined with stainless steel, and has a 51cm diameter. The basket is also made from stainless steel and is perforated. Squeezed juice drains through to a hopper.
PRICE CODE: 2
RAYLONS METAL WORKS
Kondivitta Lane
Andheri-Kurla Road
BOMBAY 400 059
INDIA
UPGRADED TRADITIONAL PRESS
This prototype model, designed to press cassava, is an improvement on the traditional sticks and rope press. It consists of two wooden frames, in between which are placed sacks filled with cassava mash. Threaded rods pass through the bottom frame to fit holes in the top frame, and by tightening the rods the frames can be pressed close together, exerting pressure on the sacks.
PRICE CODE: 1
TIKONKO AG. EXTENSION CENTRE
Methodist Church headquarters
Wesley House
P.O. Box 64
FREETOWN
SIERRA LEONE

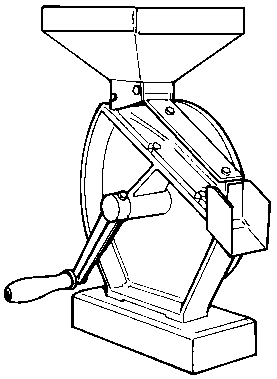

GOOD FRUIT CRUSHER
This is a self-feed crusher used for grinding precut apples/small fruit. The crusher is placed across the hopper of the fruit press, the handle is turned and the crushed fruit drops down for pressing. The equipment consists of a cast iron crank, hardwood tub and stainless steel grinding teeth. Dimensions: height 32cm x width 33cm.
PRICE CODE: 1

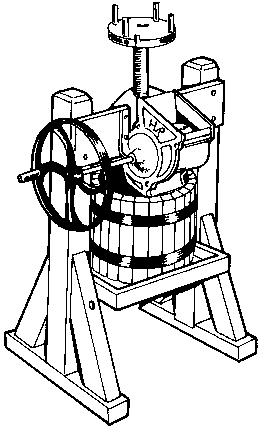

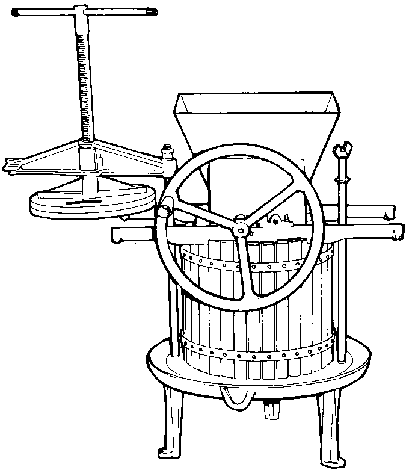

BEST FRUIT PRESS
This self-contained machine will grind and press all types of fruit. Eight rows of stainless steel teeth are embedded in a hardwood tub. All pulped fruit drops directly into a basket. Basket capacity: 0.035m³.
BEST FRUIT PRESS
PRICE CODE: 2
Both the above are manufactured by:
LEHMAN HARDWARE & APPLIANCES INC.
P.O. Box 41
4779 Kidron Road
Kidron
OHIO 44636 USA
FRUIT PRESS
This press can be used for grapes and other soft fruit. The press cage is fabricated from a steel frame with hardwood slats. Pressure is exerted by turning a handle at the top of the press. There are four sizes with cage volumes ranging from 8 to 100 litres, with a pressing force from 34.5 to 276kPa (5 to 40psi) and a press stroke from 14.5cm to 30cm. Hydraulic models are also available.
PRICE CODE: 2
RUDARSKO METALURSKI KOMBINAT
Ulica 29
Novembra br. 15
Kostajnica
79224 Bos
YUGOSLAVIA
53.2 Oil presses
UNATA 4202
This press is able to deal with most oil-bearing seeds and nuts. The heated seeds or nuts are placed inside a perforated basket. The oil is extracted by pressure applied manually via the pressing screw. Oil then seeps out onto a collecting tray. Throughput: Peanuts, 9 litres per hour, Palmnut 7 litres per hour.
UNATA 4202
PRICE CODE: 2
In addition, the UNATA 4201 OIL PRESS is also available and is designed for women to use. There are two versions of this model: one for palm fruit and the other for seeds.
UNION FOR APPROPRIATE TECHNICAL
ASSISTANCE
G. Van den Heuvelstraat 131
3140
RAMSEL
BELGIUM
MANUAL CALTECH
This manual oil press is designed mainly for palm oil and is hand-operated. The material is fed via a hopper and as the handle is turned the material is pressed against the press head. The oil is collected and the residue is pushed out from the press head. Other versions are available (electrically driven). Extraction rate: 33-37% of available oil.
MANUAL CALTECH
PRICE CODE: 4
OUTILS POUR LES COMMUNAUTES
BP 5946
DOUALA
Akwa
CAMEROON
SCREW PRESS
This manual oil press is designed for the small-scale farmer. It needs two people to operate and it processes 20kg per load.
PRICE CODE: 2
TECHNOLOGY CONSULTANCY CENTRE
University of Science & Technology
KUMASI
GHANA

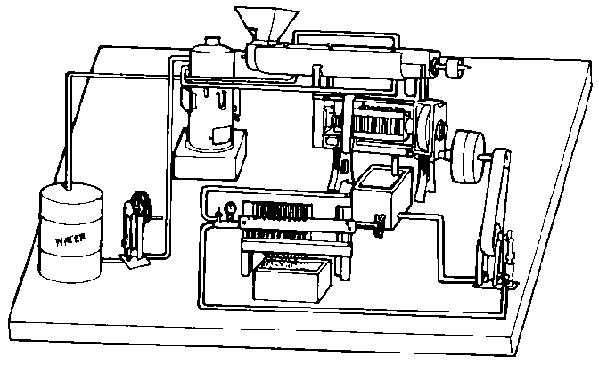

TINY TECH OIL MILL PLANT
This plant is used for the manufacture of groundnut oil. Groundnuts are fed into a decorticator and the clean kernels are then fed into a cooking kettle which is on top of the expeller. Steam from a baby boiler heats the kernels and some is also sprayed directly onto the kernels so that optimum moisture content is obtained. After this operation, the kernels are fed into the expeller where a pressure exerted by the horizontal screw extracts oil. The residue or cake is emitted at the rear end of the machine, whilst the oil is filtered before leaving. Throughput: 19-31kg per hour.
TINY TECH OIL MILL PLANT
PRICE CODE: 2

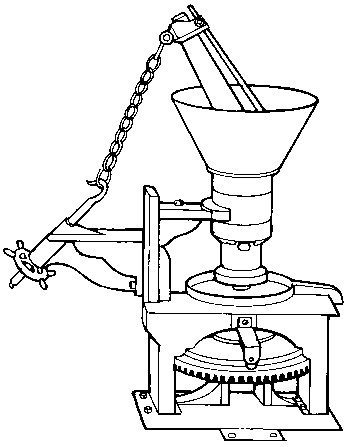

GHANI
This is designed for oil production from mustard, surya seeds, etc.
PRICE CODE: 3
BEHERE'S & UNION INDUSTRIAL WORKS
Jeevan Prakash
Masoli
DAHANU ROAD 401 602
Dist Thane
INDIA
GHANI
ROTARY OIL MILL
This continuous mill crushes copra, castor, linseed, groundnut etc. It is equipped with a lever and clutch arrangement which enables the removal of oil cakes and reloading without stopping. The oil can be produced within 20-25 minutes. For best performance, the mill should be kept hot by continuous running. Throughput: 35-40 tins each of 16.4kg. Power requirement: 3.7-5.2kW (5-7hp).
PRICE CODE: 2
Both the above mills manufactured by:
RAJAN UNIVERSAL EXPORTS (MFRS) P
LTD
Raj Buildings 162, Linghi
Chetty Street, P. Bag No 250
MADRAS 600 001
INDIA
SMALL-SCALE PALM OIL PROCESSING EQUIPMENT
Fresh bunches of oil palm can be processed using this equipment which comprises a stripper, sterilizer, digester, press and a clarifier. Capacity: 0.25 tonnes per hour.
PRICE CODE: 4
NIGERIAN INSTITUTE FOR OIL PALM
RESEARCH
Private Mail Bag 1030
BENIN CITY
NIGERIA
KIT PRESS
This hydraulic press is for shea nuts and is suited to the small-scale farmer/cooperative use. There is a fair degree of welding and fabrication skills needed for its manufacture locally. Hydraulic jacks from lorries can be used to press the nuts. Throughput: 5kg of oil per pressing.
PRICE CODE: 4
KIT PRESS
This is a hydraulic press for oilseeds, nuts and fruits. It is suitable for the small-scale farmer. As it generates high pressure, the seeds do not need to be heated, but initial heating will increase the oil yield. Hydraulic jacks from lorries can be used. Throughput: 1-2kg of oil per pressing.
PRICE CODE: 4
Both the above presses from:
ROYAL TROPICAL INSTITUTE
Mauritskade 63
1092 AD
AMSTERDAM
NETHERLANDS
KIT PRESS
This is a manual press for palm oil. The palm fruits are placed inside a perforated basket and the oil is extracted by pressure being applied manually via a pressing screw. Oil then seeps out onto a collecting tray. The skill level required for manufacturing is sophisticated. A larger model is also available. Throughput: 4.5kg of oil per pressing.
PRICE CODE: 3
COCONUT PRESS
This power screw coconut press can press 10 coconuts at a time.
PRICE CODE: 1
Both the above presses from:
ALMEDA COTTAGE INDUSTRY
2326 S. Del Rosario St
Tondo
MANILA
PHILIPPINES
SCREW PRESS
This prototype press is designed for coconut oil extraction. It comprises a hollow vertical metal cylinder with holes punched at its lower end. These allow oil to seep out when ground copra or grated coconut is pressed by a screw mechanism attached to the upper end of the cylinder. This model has a foot-operated lever to aid lifting the cylinder in order to remove pressed material. In addition fruit and cassava starch can be pressed.
PRICE CODE: 2
APPROPRIATE TECHNOLOGY CENTRE
College of Agriculture Complex
Manresa Heights
CAGAYAN DE ORO CITY 9000
PHILIPPINES

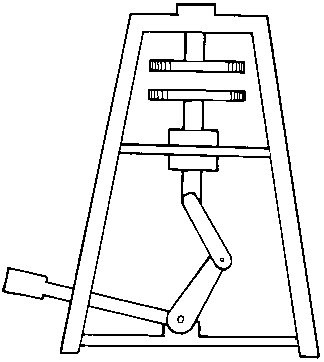

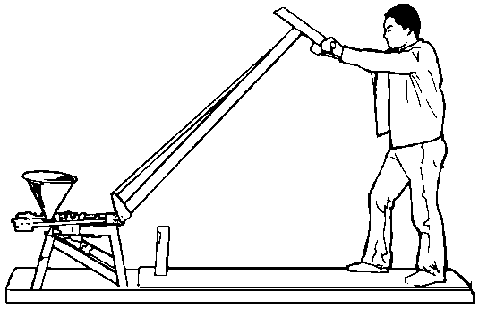

BIELENBERG RAM PRESS
This is a hand-operated oil extractor for oil-seeds. It is operated by raising and pulling down a long handle which drives a steel ram into a cylinder cage where the seed is pressed. The machine can be operated by one person. When the handle is in an upright position the steel ram is pushed out and the seed is fed from the hopper to the cage. Each time the handle is pressed down, a stream of oil appears from the underside of the cage. 75% of the available oil from sunflower can be extracted.
BIELENBERG RAM PRESS
PRICE CODE: 2
ELCT-DAR
Village Sunflower Project
P.O. Box 1409
ARUSHA
TANZANIA
MINI PALM FRUIT DIGESTER (POUNDING MACHINE)
This machine is fitted with self-aligned, sealed and self lubricated bearings. The beaters are made of high carbon steel and the machine can be operated by hand or by motor/engine. Throughput: 100-200kg per hour.
PRICE CODE: 2
AGRICULTURAL ENGINEERS LTD
Ring Road West Industrial Area
P.O. Box 12127
ACCRA-NORTH
GHANA
EPOMIL OIL PROCESSING MACHINE
This machine pounds boiled palm fruits, separating the fibre from the palm nut and extracting the fresh palm oil. It handles a batch capacity of 10kg of boiled palm fruit and takes ten minutes to produce the oil. The machine is incorporated with a gas operated steam cooker and auxiliary screw press. Batch capacity: 10kg fruit.
PRICE CODE: 2
DEPARTMENT OF AGRICULTURAL
ENGINEERING
Faculty of Engineering
University of Nigeria
Nsukka
NIGERIA
Oilseed presses also manufactured by:
KARNATAKA IRON WORKS
Balmatta Road
Near Bendoor Well
MANGALORE 575 002
INDIAIBG MONTFORTS & REINERS GMBH &
CO.
Postfach 200853
D4050
Monchengladbach 2
GERMANYRAMZAN ENGINEERING WORKS
Maqbool Rd
FAISALABAD
PAKISTANKISAN KRISHI YANTRA UDYOG
64 Moti Bhawan
Collector Ganj
Kanpur 208 001
INDIAAGRICULTURAL ENGINEERS LTD
Ring Road West Industrial Area
P.O. Box 12127
ACCRA-NORTH
GHANAAGRO MACHINERY LTD
P.O. Box 3281
Bush Rod Island
Monrovia
LIBERIAAGROMAC LTD
449 1/1 Darley Rd
Colombo 10
SRI LANKAALVAN BLANCH DEV. CO. LTD
Chelworth
Malmesbury
Wiltshire
SN16 9SG
UK
53.3 Meat presses

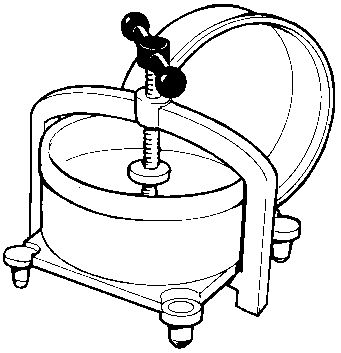

COOKED MEAT PRESS
This press is made from heavy duty cast iron and it has a free-running spindle which is used to press the meat. The dimensions of the ceramic dish are: 16 x 8cm.
COOKED MEAT PRESS
PRICE CODE: 1
LAKELAND PLASTICS
38 Alexandra buildings
WINDERMERE
LA23 1BQ UK

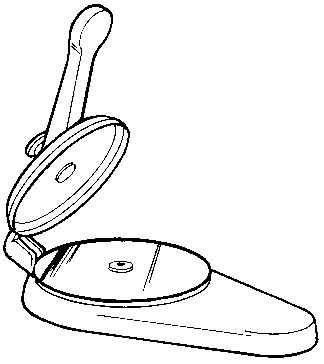

BONZER BURGER MOULD KIT
This is a hand-operated mould, designed to produce 10cm patties approximately 57g in weight which can be quickly pressed between stainless steel plates. The set comprises: mould, 1000 cellulose wraps and a portioner for measuring and handling the meat mixture.
BONZER BURGER MOULD KIT
PRICE CODE: 1
MITCHELL & COOPER LTD
Framfield Road
UCKFIELD
TN22 5AO2
UK
PUFFED GRAIN MACHINE
This machine will puff grains (e.g. rice, corn and sorghum). It can be operated by two people, and is powered by a 4kW (5.4hp) electric motor. Steaming and baking are not required afterwards. Throughput: 18-22kg per hour.
PRICE CODE: 4
YULING MACHINE WORKS
Jianshelu
Guxian County
Henan Province
CHINA
EDIBLE-GRAIN TOASTER
This machine will toast and puff grain. It is powered by a Nissan 1200 motor (petrol engine) and can work for 24 hours with a single operator. Throughput: 1000kg chizitos per day.
PRICE CODE: 4
MAQUINARIAS Y AUTOPARTES EL
LATINO
Av Grau No 1191
LIMA
PERU
Puffing machinery also manufactured by:
EL ELEFANTE SR LTELA
Av Aviacian 1525
(Ovalo Av Amola) La Victoria
LIMA
PERU
55.1 Steam juicers
MEHU MAIJA
This is a fruit juicer which uses steam to extract the juice. The fruit is placed in a perforated steamer basket. This is stacked on top of a juice kettle and the juice drains through the perforations into a collecting container between the kettle and the steamer basket.
PRICE CODE: 1
LEHMAN HARDWARE & APPLIANCES INC.
P.O. Box 41
4779 Kidron Road
Kidron
OHIO 44636
USA
Steam juicers also manufactured by:
GEBR. RADEMAKER
P.O. Box 81
3640 AB MIJDECHT
NETHERLANDSRR MILL INC.
45 West First North
Smithfield
UTAH 84335
USA
55.2 Mincing juicers/pulpers

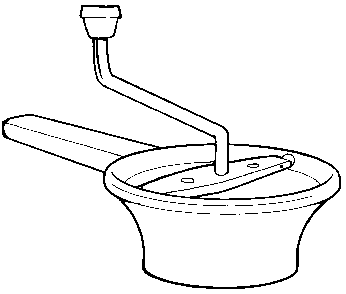

MOULI BABY
This hand-operated machine purees fruit and vegetables. These are placed into a plastic container. A handle turns a knife which churns the fruit, and puree is discharged from the bottom.
MOULI BABY
PRICE CODE: 1

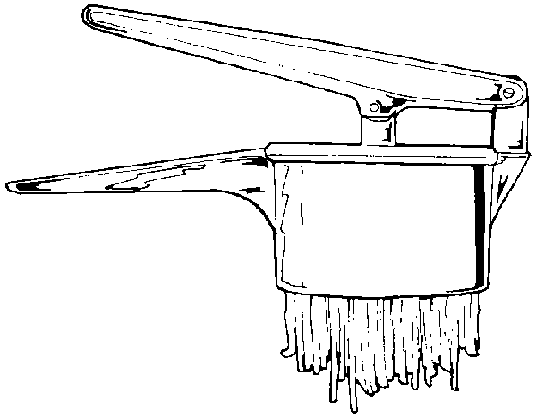

POTATO RICER
This machine mashes root vegetables, and squeezes the juice out. The vegetable or fruit is placed into the ricer, and the handle is pushed downwards to press the vegetable or fruit. The mash/juice is then extruded through the perforations in the base of the unit.
POTATO RICER
PRICE CODE: 1
Both the above squeezers from:
LAKELAND PLASTICS
38 Alexandra buildings
WINDERMERE LA23 1BQ
UK
JUICE EXTRACTOR
This manually-operated press is for the juice extraction from fruit. The equipment comprises a conical hopper, receptor, precision plate, rod for fixing the hydraulic unit, lever and a protection guard. Two to four operations can be performed per minute. Capacity: 10 litres.
PRICE CODE: 1
DISENOS Y MARQUINARIA JER S.A.
Emiliano Zapata 51
Col Buenavista, 54710
Cuautitlan Itzcalli
MEXICO
VACUUM FRUIT PRESS
This manual fruit press works by exerting pressure inside a specially designed bag. Almost all fruit and vegetables can be pressed with this system. The press kit contains everything that is needed. The fruit is placed inside a special three-layered bag and sealed with a slide grip. Using a simple handpump (which is a reversed bicycle pump), the air can be removed from the system in 30-40 seconds.
The standard press can hold 1.6kg of fruit. A larger capacity press is available and can hold 3.1kg fruit. The system is not intended to be a filter and there will usually be a certain amount of solid material in the juice.
PRICE CODE: 1
CECIL VACUUM SYSTEMS
9 School Place
OXFORD
UK
LEMON REAMER
This hand-operated reamer is used for the pulping of lemons and limes. The pulp and juice are extracted by a pressing action. Length: 15cm.
PRICE CODE: 1
VICTORIO STRAINER
This purees soft fruits and vegetables. No peeling or coring is necessary for this machine, as the juices and fruits are separated from the seeds. The fruit or vegetables are placed in the hopper and the handle is turned. Seeds, skins and cores are continuously separated from the puree. The machine works best with tomatoes and apples but accessories are available for grapes, berries, pumpkins and squash.
VICTORIO STRAINER
PRICE CODE: 1
APPLE EATER
This is a self-feed apple grinder for high-speed juice extraction. The flywheel is turned and whole apples are self-fed into the grinding mechanism. It has a 1.9cm steel axle mounted on cast iron bearings over 3.8cm long. The mechanism is enclosed in a solid cast iron housing.
PRICE CODE: 1
The above are all available from:
LEHMAN HARDWARE & APPLIANCES INC.
P.O. Box 41
4779 Kidron Road
Kidron
OHIO 44636
USA
LIFE STREAM JUICER
This hand-operated juicer extracts the juice from wheat grass, vegetables and fruit. It comprises a stainless steel auger, nylon brushings, a plunger and easy-to-turn handles.
PRICE CODE: 1
RR MILL INC.
45 West First North
Smithfield
UTAH 84335
USA
PULPER BY CITA
This pulper is designed for pulping fruit at the community/village scale. It uses a perforated cylinder which is supported by two plates and held together by four screws. A small diesel or electric 0.75kW (1hp) motor can be used if a 10cm pulley is attached to the pulper axle. The machine can easily be taken apart for washing.
PRICE CODE: 2
MINISTRY OF AGRICULTURE
Dunbars
ANTIGUA
COCOA JUICE EXTRACTOR
This semi-continuous cocoa pulp extractor has a horizontal cylinder with a perforated wall. Rotating blades are mounted on the central axis and these remove the pulp from the seed. Throughput: 99-180kg per hour.
PRICE CODE: 4
EVANDRO FREIRE
Centro de Pesquisas do cacao
Divisao de Technologica Agricola
LX.P7
Itabuna BA
BRAZIL

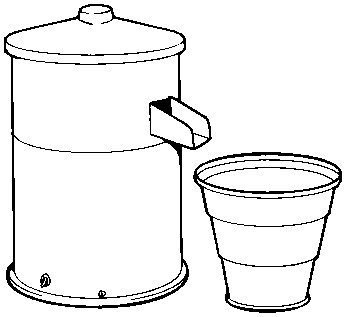

JUICE EXTRACTOR MODEL EJ4EX
This small industrial juice extractor uses a single phase 0.19kW (0.25hp) motor or a 50/60Hz 110/220V, 550W electricity supply. A sieve is available as an optional extra. Dimensions: length 37cm x diameter 19cm.
JUICE EXTRACTOR MODEL EJ4EX
PRICE CODE: 2

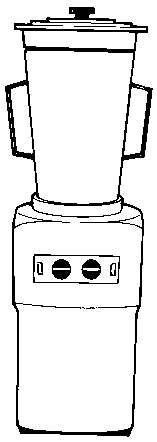

LIQUIDIZER LIQ 4
This is used for liquidizing or pureeing fruit and vegetables. The liquidizer has a 0.37kW (0.5hp) motor and requires a 60Hz electricity supply. Included in the equipment are: a cutting knife, a glass bowl with handle and a stainless steel motor housing with speed control. Capacity: 4 litres. Dimensions: 23 x 71 x 23cm.
LIQUIDIZER LIQ 4
PRICE CODE: 1
CROYDON IND DE MAQS LTDA
Soci Gerente
R 24 de Fevereio 71 F75-77-79
RIO DE JANEIRO, RJ 21040
BRAZIL
FRUIT AND VEGETABLE PULPER
This pulper is operated by a pulley driven by a 0.37kW (0.5hp) motor. A 35cm sieve is used, giving a throughput of 80kg per hour.
PRICE CODE: 2
Another pulper is powered by a 0.37-1.lkW (0.51.5hp) motor, with a throughput of 80-500kg per hour.
COIL TYPE JUICE EXTRACTOR
This extractor has an aluminium juicing head with a stainless steel sieve. The machine is powered by a 0.37kW (0.5hp) motor, processing up to 750 oranges per hour. Alternatively, using a 0.75kW (1hp) motor it can process 2000 oranges per hour.
PRICE CODE: 2
Both the above from:
NARANGS CORPORATION
25/90 Connaught Place
Below Madras Hotel
NEW DELHI 110 001
INDIA
SCREW-TYPE JUICE EXTRACTOR
Designed for medium-scale juice extraction, this machine is driven by a 0.75kW (lhp), three-phase, 440V motor. All contact parts are fabricated from stainless steel and there are two sets of sieves. A hand operated version is also available. Throughput: 1000 oranges or 800 lemons per hour.
SCREW-TYPE JUICE EXTRACTOR
PRICE CODE: 2
RAYLONS METAL WORKS
Kondivitta Lane
Andheri-Kurla Road
BOMBAY 400 059
INDIA

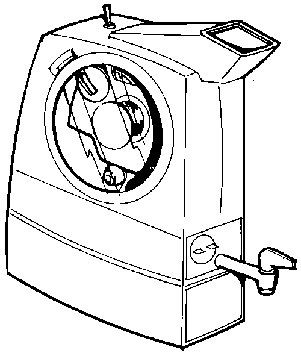

ROTO ROTARY ORANGE JUICER
This is a table-sized automatic orange juicer in a self-contained unit. Oranges are fed into the juice hopper for automatic selection and slicing in half. The orange halves are then mechanically reamed. The seeds are strained and the pulp is compressed to maximize the yield of juice. All waste is deposited in a disposable unit. Throughput: 2640-3960 oranges per hour. Dimensions: length 40.6 x width 22.9 x height 55.9cm.
ROTO ROTARY ORANGE JUICER
PRICE CODE: 2
FMC CORPORATION
Machinery International Div
P.O. Box 1178
SAN JOSE
California 95108
USA
NEW WHEATEENA WORKHORSE
Most leafy greens, grasses, herbs and sprouts can be juiced using this machine. The motor is mounted on stainless steel brackets. Throughput: 3.4 litres juice per hour.
PRICE CODE: 2
In addition the following versions are also available:
· WHEATEENA STANDARD ELECTRIC· POWER UNIT & WHEAT GRASS JUICER
RR MILL INC.
45 West First North
Smithfield
UTAH
84335
USA
Also manufactured by:
BCH EQUIPMENT
Mellor Street
ROCHDALE
OL12 6BA
UKSPANGENBERG BV
Grootkeuken Professionals
De Limiet 26
4124 PG VIANEN
NETHERLANDSROBOT COUPE
10 Rue Charles Delescuze
BP 135
BAGNOLET
93170
FRANCE
Mincing juicers/pulpers also manufactured by:
RAYLONS METAL WORKS
Kondivitta Lane
Andheri-Kurla Road
BOMBAY
400 059
INDIANARANGS CORPORATION
25/90 Connaught Place
Below Madras Hotel
NEW DELHI 110 001
INDIAFOOD PRESERVATION SYSTEMS
1604 Old New Windsor Road
New Windsor
MARYLAND
21776
USAGARDEN WAY SQUEEZO
1 Mill Street
BURLINGTON
VT 05401
USA
55.3 Coffee pulpers
Manual coffee pulpers

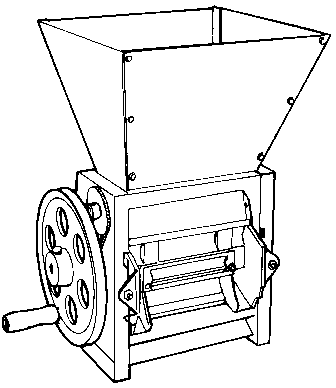

DRUM PULPER
This pulper is designed for small scale coffee pulping. Its principal features include self-lubricating oil-lite brushes. The pulping brush is made from aluminium. In addition to the hand-operated machine, other sizes can be powered by petrol, diesel or electric motors. Capacity: 300kg.
DRUM PULPER
PRICE CODE: 2
DENLAB INTERNATIONAL (UK) LTD
Friary View
40 White Horse Lane
Maldon, Essex
CM9 7QP
UK
IRIMA 67 DISC COFFEE PULPER
This removes the exo- and mesocarp from cherries. The cherries are fed into the hopper with water. The bulbed disc rotates when the handle is turned and, together with the pulping bar, rubs off the outer coatings, leaving a pulp. The pulping bar is straight and has a renewable steel edge. By altering the position of the disc on the shah, the skin clearance between the disc and the steel edge can be regulated. Throughput: 270-360kg per hour (ripe cherries).
IRIMA 67 DISC COFFEE PULPER
PRICE CODE: 3
JOHN GORDON & CO. (ENGINEERS) LTD
Gordon House
Bower Hill
EPPING
CM16 7AG
UK
HAND-POWERED 'ATOM' PULPER
This pulper is designed for the treatment of Arabica and Robusta coffees. Few adjustments and a minimum amount of water are needed. The machine works on the same principles as other cylinder pulpers. Throughput: Ripe cherry coffee 54kg per hour.
PRICE CODE: 3
GERICO FRANCE
25 Rue d'Artois
PARIS
75008
FRANCE
Coffee pulpers also manufactured by:
AGRICULTURAL ENGINEERS LTD
Ring Road West Industrial Area
P.O. Box 12127
ACCRA-NORTH
GHANAKEMAJUAN
Irian Jaya 3
Malang 63118
EAST JAVA
INDONESIADENLAB INTERNATIONAL (UK) LTD
Friary View
40 White Horse Lane
Maldon
Essex
CM9 7QP
UKGERICO UK LTD
Hardy House
Somerset
ASHFORD
TN24 8EW
UKAGRO MACHINERY LTD
P.O. Box 3281
Bush Rod Island
Monrovia
LIBERIA
Powered coffee pulpers

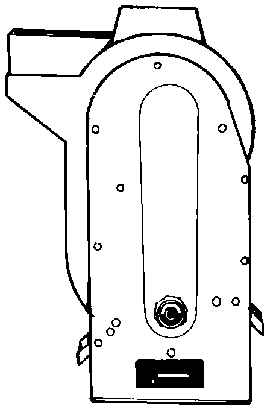

PULPER AND KNEUZER TYPE S320
This pulper processes red ripe coffee cherry. It comprises: inlet hopper and gate, cylinder with bobbled plate lining (to provide a round surface), pulping knife, outlet chute, rubber knife under pulping knife, pulley and a main shah. Capacity: 300kg.
PRICE CODE: 3
KEMAJUAN
Irian Jaya 3
Malang 63118
EAST JAVA
INDONESIA
SMALL-SCALE COFFEE PULPER
All types of coffee, except Robusta can be processed using this pulper. A replaceable copper cover is provided and this is protected by a stone catcher in the hopper. The machine requires a power supply of 0.37kW (0.5hp), and two operators. The disc is 33cm in diameter and the pulley is 51cm. Throughput: 150kg ripe cherries per hour.
PRICE CODE: 2
BM ENGINEERING WORKS
PB No. 12
Naidu Street
CHIKMAGALUR 577 101
INDIA
Powered coffee pulpers also manufactured by:
BM ENGINEERING WORKS
PB No. 12
Naidu Street
CHIKMAGALUR 577 101
INDIAPENAGOS HERMANOS & CIA. LTDA
Apartado Aereo 689
Bucaramanga
COLOMBIAGERICO UK LTD
Hardy House
Somerset
ASHFORD
TN24 8EW
UKGERICO FRANCE
25 Rua D'Artois
PARIS 75008
FRANCE
7900 REFRACTOMETER
The sugar content of honey can be measured using this hand-held model which operates by placing two to three drops of liquid onto the prism and closing the lid. By looking through the eye-piece, it is possible to read the brix content directly from a gauge. It measures a brix range of 40-85%.
PRICE CODE: 2
SWIENTY
Hortoftvej 16
Ragebol
Sonderborg DK 6400
DENMARK
REFRACTOMETER ABBE IT
This is a general purpose bench refractometer. The sample temperature is measured by a built-in thermistor in the prism and is displayed digitally on a separate thermometer unit. In addition the following are supplied: integral illuminator, five illuminator lamps (8V 0.15A), refractive index test piece, thermometer and a light source transformer. Power requirements: 240, 50Hz electricity supply. Brix: 0-95%. Dimensions: 13 x 18 x 23cm.
PRICE CODE: 4
REFRACTOMETER SALINITY SI MILL
This hand-held refractometer reads the salt density of various salt solutions. Salinity is measured as salinity per mill units (N°/00). The range of salinity is 0-100°/00. Dimensions: 4 x 3.5 x 19.5cm.
PRICE CODE: 2
REFRACTOMETER N3
This is suitable for products with a high sugar content, such as malt, honey, jam etc. A transparent resin standing up to high temperatures is used on the cover plate. The unit is fitted with a knob which allows the cover plate to be opened more easily when samples of high viscosity are used. Brix range 58-90%. Dimensions: 3 x 3.5 x 13.5cm.
PRICE CODE: 2
Other versions currently available include the following:
REFRACTOMETER N1 - for the low concentration measurement of sugar contents of fruit, juices, soft drinks and other beverages.REFRACTOMETER N2 - hand-held and designed for mid-range concentrations.
REFRACTOMETER ATC 1 - hand-held and designed to compensate variable temperatures.
REFRACTOMETER HAND N10 - hand-held and designed for use with products of a low sugar content.
The above all available from:
THE NORTHERN MEDIA SUPPLY LTD
Sainsbury Way
HESSLE
HU13 9NX
UK
SUGAR REFRACTOMETER
This measures sugar content. The following size ranges are available: 0-45%, 4085%.
PRICE CODE: 1
NARANGS CORPORATION
25/90 Connaught Place
Below Madras Hotel
NEW DEHLI 110 001
INDIA
Refractometers also manufactured by:
AMBRESCO
5600W. Raymond S
INDIANAPOLIS
IN 46241
USAPHILIP HARRIS SCIENTIFIC
Scientific Supplies Co.
618 Western Avenue
Park Royal
LONDON W3 0TE
UKGALLENKAMP EXPRESS
Belton Road West
Loughborough
Leicestershire
LE11 0TR
UK
Honey refractometers:
STEELE & BRODIE
Stevens Drove
Houghton
Stockbridge
Hampshire
UK
HUMIDITY METER JENWAY 5060
This is a compact humidity meter using an integral probe. It has the advantage that it can be quickly recalibrated with 75% calibration standard in the form of a screw-on bottle, giving an accuracy of +/- 3% and a resolution of 1%. There is an LCD display and a splashproof touch-sensitive membrane switch. The unit is powered by a 12V battery. RH range: 15-90%. Dimensions: 12 x 3.5 x 2.2cm.
PRICE CODE: 2
Another model, the HUMIDITY/TEMP METER JENWAY 5500, is also available. This is portable, powered by 5 AA size bat-series and measures both wet and dry bulb temperatures to give an RH reading on the LCD display.
THE NORTHERN MEDIA SUPPLY LTD
Sainsbury Way
HESSLE HU13 9NX
UK
RH meters also manufactured by:
GEBR. RADEMAKER
P.O. Box 81
3640 AB MIJDECHT
NETHERLANDSPHILIP HARRIS SCIENTIFIC
Scientific Supplies Co.
618 Western Avenue
Park Royal
LONDON W3 0TE
UKGALLENKAMP EXPRESS
Belton Road West
Loughborough
Leicestershire LE11 0TR
UK

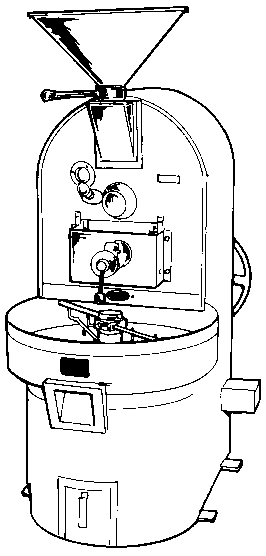

ROASTER RA 10015
This will roast coffee, cashew, peanuts and soya. It is equipped with an LPG furnace pellicle collector, anti-pollution equipment balcony drawer (to receive the roasted product) and a compartment for the gas cylinder. Capacity: 5kg product per batch.
PRICE CODE: 2
JR ARAUJO IND E COM DE MAQS LTDA
Division Internacional
Rua General Jardim 645
SAO PAULO SP
CEP 01223
BRAZIL
COFFEE ROASTER
COFFEE ROASTER
This coffee roaster is suitable for small-scale projects.
PRICE CODE: 1
AGRICULTURAL ENGINEERS LTD
Ring Road West Industrial Area
P.O. Box 12127
ACCRA-NORTH
GHANA
GARI ROASTER
This will roast pulverized and sieved cassava dough. The roasting pan has been constructed with a 3mm iron plate and a chimney is provided to make the roasting process smoke-free.
PRICE CODE: 1
AGRICULTURAL ENGINEERS LIMITED
Ring Road West Industrial Area
P.O. Box 12127
ACCRA-NORTH
GHANA
HAND-OPERATED PEANUT ROASTER
This roaster was developed for peanut roasting on a small scale. The machine consists of a roasting pot, a rotating shah with an agitator and a stand. 1kg can be roasted in 15 minutes.
PRICE CODE: 1
PAPUA NEW GUINEA UNIVERSITY OF
TECHNOLOGY
PM Bag
LAE
PAPUA NEW GUINEA

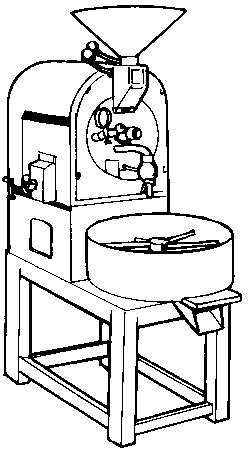

BRULOIR ROASTER
This will roast cocoa, coffee and cashew nuts. An electric heater is fitted but it is also provided with a space for a kerosene burner. The rotary drum with cross blades gives uniformity and quick discharge of materials into the cooling tray. The automatic stirrer moves and discharges the roasted materials to the final storage tank.
BRULOIR ROASTER
All colour changes can be seen through a viewer. Power requirements: 0.37-1.1kW (0.5-1.5hp) depending on the model. Throughput: 15-100kg per hour. Size range: 4.5, 10, 13, 18, 24, 30kW.
PRICE CODE: 2
RAJAN UNIVERSAL EXPORTS (MFRS) P
LTD
Raj Buildings 162, Linghi
Chetty Street, P. Bag No. 250
MADRAS 600 001
INDIA
Roasting equipment also manufactured by:
AGRICULTURAL ENGINEERS LTD
Ring Road West Industrial Area
P.O. Box 12127
ACCRA-NORTH
GHANA
DIAL-A-DEPTH ROLLING PIN
This rolls pastry and pasta, measuring its thickness. The roller is coated with a non-stick finish. The operator chooses the required thickness and then positions the dial at that number. The higher the number, the thicker the pastry. Thicknesses from 0 to 8mm can be measured. Length: 25cm.
PRICE CODE: 1
LAKELAND PLASTICS
38 Alexandra Buildings
WINDERMERE
LA23 1BQ
UK
PAPAD PRESS
This press will press papads from dhal flours. There are two discs: an upper fixed disc and a lower movable disc. The lower disc is connected to a toggle mechanism which is activated by a foot pedal. When pressed, the toggle mechanism moves the lower disc against the upper, causing the papad to be pressed.
PAPAD PRESS
PRICE CODE: 1
CENTRAL FOOD TECHNOLOGICAL
RESEARCH INSTITUTE
Food Technology PO
MYSORE 570 013
INDIA
PASTRY ROLLER MACHINE
This rolls pastry using a stainless steel roller on a folding table.
PRICE CODE: 1
MITCHELL AND JOHNSON PVT LTD
P.O. Box 966
BULAWAYO
ZIMBABWE
Rolling machinery also manufactured by:
ASHOK TRADING CO.
18 R N Mukherjee Road
CALCUTTA 700 001
INDIAJYOTHI INDUSTRIES
31 Pampamahakavi Road
BANGALORE 560 004
INDIASHREE RAJALAKSHMI INDUSTRIES
No 61 13th Cross
J.P. Nagar 3rd Phase
BANGALORE 560 002
INDIAMYSORE PRECISION ENGINEERS
C 123 Industrial Estate
Yadavagiri
MYSORE 570 020
INDIA
MINI SMOKER
This self-contained unit is capable of hot and cold smoking. Air and smoke are drawn horizontally over the products by an integral centrifugal fan driven by a continuously-rated motor. Automatic control of temperature is maintained by a preset thermostat, and slide dampers regulate the required smoke density for the product. The air is drawn through a multi-plate diffuser wall, providing an even air flow over the working section. It is then passed by a fan and recirculated by the top duct section. Power requirement: 4.25kW, 240V, 50Hz single phase. Dimensions: length 18.5 x width 6.6 x height 94cm. A MAXI model is also available.
PRICE CODE: 4
AFOS LTD
Springfield Way Manor Estate
Anlaby
HULL HU10 6RL
UK

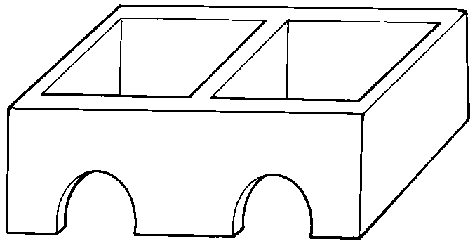

CHORKER SMOKER
This large, rectangular smoking oven is both cheap and socially appropriate. The smoking ovens can be constructed in four ways: clay and mud shaped by hand, packed mud faced with cement, clay mud blocks and mortar, or cement blocks with mortar. The top oven is designed to be square, level and flat; the stoke holes should be arched for structural strength; and the oven should be large enough for stoking and removing wood, but not so large as to permit heat and smoke escaping. In addition, the oven should be low, for ease of stacking up to 15 trays, but the fire should be at least 50cm from the lowest tray, hence a 10-20cm fire pit is required for each stoke hole. The smoker is designed so that wooden trays will rest along the midlines of the oven walls. Tray capacity: 15kg fish.
CHORKER SMOKER
PRICE CODE: 1
NATIONAL COUNCIL ON WOMEN AND DEVELOPMENT
P.O. Box M53
ACCRA
GHANA
DRUM SMOKER
This simple drum smoker can be used by a single person and can be made from scrap materials. It consists of two units: a smoke drum and a fire box. The drum is cleaned and the top is cut out. A fire box is made from a half 210 litre oil drum, and is fitted with a trap door. A smoke pipe with a damper (to control the smoke and fire) is fitted into holes cut in the smoke and fire boxes. Eight round wire mesh trays are required for the smoker. There are two ways of smoking: hot and warm. With hot smoking a short pipe is used between the fire box and the smoke drum. The fish are placed on the trays and are stacked inside the drum to be smoked for three to four hours. Warm smoking uses a long pipe and the damper is only half open. Therefore the fire is not as hot and smoking time takes between four and five hours. Capacity: 15-20kg fish.
DRUM SMOKER
PRICE CODE: 1
CENTRAL FISHERIES RESEARCH
INSTITUTE
ZAMBIA
In most very small-scale operations, sorting of raw materials and finished products is done by hand. However, for the larger scale there are a variety of small sorting machines available to grade foods on the basis of size, density or shape. Colour sorting machines are only available for large-scale operations and are expensive.

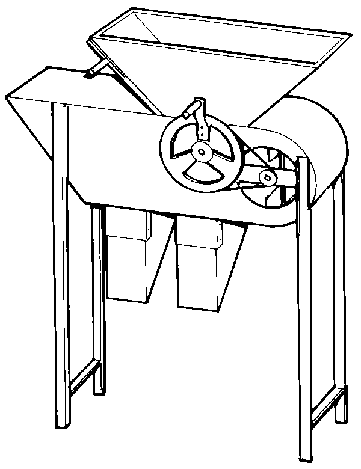

CONGO COFFEE GRADER
This hand-operated grader separates coffee into three products. It has a cylinder made from detachable perforated sheet with two sizes of perforations, thus giving three products. Spare sheets with different sized perforations can be obtained on request. Throughput: 50kg per hour.
CONGO COFFEE GRADER
PRICE CODE: 2
The following versions are a/so available:
UNIVERSAL COFFEE SIZER - provides two or three grades of coffee.COFFEE TESTING SCREENS - screens are available with seventeen different sizes of round hole perforations.
GRADING MACHINE - separates gari into three grades and can be manually or electrically operated.
JOHN GORDON & CO (ENGINEERS) LTD
Gordon House
Bower Hill
EPPING
CM16 7AG
UK
SFT 500 SIEVING & GRADING MACHINE
This machine is for sieving and grading spices and flours and is designed to provide a gyratory-type vibration. The machine has a 1.1kW (1.5hp) motor which requires a 440V electricity supply. All contact parts are made from stainless steel. Optional extras include, brushing accessories and a stainless steel lid with a charging port. Throughput: 100kg per hour. Dimensions: 100 x 100 x 110cm.
PRICE CODE: 4
IBERIA GRADER MARK 11
This single cylinder type grader has screens which are arranged to give a uniform classification of flat beans and perfect separation of peaberries into seven classifications. The grading cylinder is made from special piano wire and perforated steel plates. The feed worm carries the coffee uniformly to the next screens. There is no gearing in the hand powered versions. Each model is available with an electric motor mounted on the machine with a V-motor drive to the cylinder. Four different sizes are available.
PRICE CODE: 4
BRITANNIA MARK II COFFEE GRADER
This double cylinder type grader sorts coffee into nine sizes. Within each grade the flat bean passes over perforated wire screens to ensure that they are of uniform size. They are then graded by their thickness and width. Four different sizes of model are available.
PRICE CODE: 4
The following versions are also available:
ESCOCIA GRADER - separates green coffee beans into five classes.CASTILLA GRADER - available in three sizes with hand or motive power option, and designed for grading small amounts of coffee.
IBERCALE COFFEE GRADER - similar to the IBERIA GRADER MARK II except that it has outlet spouts and hooks to help bagging.
W M MACKINNON & CO. LTD
Spring Garden Ironworks
Aberdeen
Scotland AB9 1DU
UK
Sorting equipment also manufactured by:
RAYLONS METAL WORKS
Kondivitta Lane
Andheri-Kurla Road
BOMBAY 400 059
INDIAGARDENERS CORPORATION
6 Doctors Lane
PB No. 299
NEW DELHI 110 001
INDIADANDEKAR MACHINE WORKS LTD
Dandekarwadi, Bhiwandi
Dist. Thane
Maharashtra 421302
INDIAAGRICULTURAL ENGINEERS LIMITED
Ring Road West Industrial Area
P.O. Box 12127
ACCRA-NORTH
GHANA
STARCH SEPARATOR
This separates and purifies starch produced from maize, cassava or wheat. It is powered by a diesel engine and has a good separation efficiency. Throughput: 15-30kg per hour. Dimensions: 144.7 x 119.6 x 147.6cm.
PRICE CODE: 2
ANQING MARINE DIESEL ENGINE PLANT
38 Du Jiang Lu
Anqing
ANHUI
CHINA

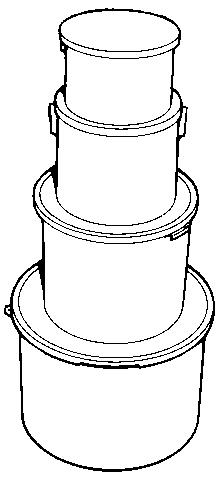

PLASTIC HONEY BUCKETS
These are used for storing honey in small to medium quantities. They are white with a handle and have tight fitting lids. The insides are smooth and there are no seams. The bigger versions usually have a gate valve to aid dispensing. Size range: 34, 27, 13kg.
PLASTIC HONEY BUCKETS
PRICE CODE: 1
NILKAMAL CRATES AND CONTAINERS
5 Rewa Chambers
New Manne Lines
Bombay 400 020
INDIA
CHURNS WITH LIDS
This range of churns includes models which are available with a single handle or handles on both sides. Special pouring churns are also available. Size range: 8, 10, 15, 20, 25, 30, 40, 50 litres.
PRICE CODE: 1
ADELPHI MANUFACTURING CO. LTD
Olympus House
Mill Green Road
HAYWARDS HEATH
RH16 1XQ
UK
STANDARD STORAGE VESSELS
These are stainless steel vessels on wheels in sizes ranging from 20-150 litres.
PRICE CODE: 1-2
ADELPHI MANUFACTURING CO. LTD
Olympus House
Mill Green Road
HAYWARDS HEATH
RH16 1XQ
UK
ALUMINIUM MILK CANS
PRICE CODE: 1
MILK THERMOS CANS
These maintain a constant temperature for storage of milk.
PRICE CODE: 1
MILK CANS WITH 'MUSHROOM' LIDS
PRICE CODE: 1
MILKING PAILS
These are the domed type.
PRICE CODE: 1
MILK AND CREAM DRUMS
These are large pans with handles for milk storage.
PRICE CODE: 1
All the above available from:
DAIRY UDYOG
C-229A/230A, Ghatkopar Industrial Estate
L.B.S. Marg, Ghatkopar (W)
BOMBAY 400 086
INDIA
MILK CANS AND MILK BUCKETS
Various milk cans from 5-20 litres capacity are available for delivery, and 20-50 litres capacity for transport. Milk buckets of capacities 5-15 litres are also available. The transport cans are made from aluminium alloy and are anodyzed, whereas the delivery cans and milk buckets are higher gauge aluminium.
PRICE CODE: 1
DATINI MERCANTILE LTD
Enterprise Road
Box 45483
Nairobi
KENYA
PLASTIC CRATES
This is a range of plastic containers for fruit and vegetables. The containers are made from high-density polyethylene and can withstand temperatures from -30°C to 75°C. The lids and locking clips are available as optional extras. There are eight sizes in the range.
PRICE CODE: 1
SCREEN STORAGE
This is a fly-proof storage unit based on a design from Fiji. The following materials are required for its construction: bamboo or packing cases, wood from the bush, split bamboo, fly-proof plastic or gauze, hinges, screws and nails. A rectangular storage box is made from bamboo, air vents are left in the ends and these are covered with wire gauze. The unit also has two hinged doors at the front which are covered with fly-proof plastic or wire gauze. The legs stand in an ant trap, comprising a small tin holding water or kerosene.
SCREEN STORAGE
PRICE CODE: 1
ILO - SDSR
P.O. Box 60598
NAIROBI
KENYA
Storage equipment also manufactured by:
LAKELAND PLASTICS
38 Alexandra Buildings
WINDERMERE LA23 1BQ
UKGEBR. RADEMAKER
P.O. Box 81
3640 AB MIJDECHT
NETHERLANDS
There are three basic types of thermometer: those that contain mercury or alcohol in a glass tube; panels that change colour with different temperatures, and electronic or digital thermometers. The former are cheaper and do not require maintenance but are easily broken which is hazardous in a food processing area. Mercury thermometers should never be used in a food processing room. Electronic thermometers are more expensive and difficult to maintain but are able to measure a wider range of temperatures (e.g., from -20°C in a freezer to 400°C in an oven).
Temperature measurement (analogue)
FRIDGE THERMOMETER
This LCD stick-on thermometer measures the temperature of a refrigerator and changes colour accordingly.
PRICE CODE: 1
FREEZER/FRIDGE THERMOMETER
This thermometer hangs, stands or clips into a fridge/freezer. For ease of reading, the temperature zones are colour coded.
PRICE CODE: 1
CANDY/JELLY/DEEP FRY THERMOMETER
This thermometer uses a 15cm probe to measure the temperature of foods whilst cooking. The temperature is displayed on a dial.
PRICE CODE: 1
BRASS SUGAR AND JAM THERMOMETER
This themometer is a traditional brass design. Probe length: 20.5cm.
PRICE CODE: 1
The following thermometers are also available:
(1) MEAT DIAL THERMOMETER
(2) COOKMETER
(3) OVEN DIAL THERMOMETER
(4) WINE & BEER MAKING THERMOMETER
ALL PRICE CODE: 1
All the above thermometers from:
WEST METERS LTD
Dept Kom
Western Bank Industrial Estate
WIGTON
CA7 9SJ
UK
THERMOMETER, GENERAL PURPOSE
This thermometer comprises a mercury-filled, toughened bulb, with an anti-roll cap. Seven versions are available, differing in temperature range and graduation. Length: 30.5cm.
PRICE CODE: 1
The THERMOMETER BI-METALLIC DIAL & STEM is also available.
THE NORTHERN MEDIA SUPPLY LTD
Sainsbury Way
HESSLE
HU13 9NX
UK
DAIRY THERMOMETER
This thermometer is designed for butter, cheese and yoghurt production. With the dairy products, accurate temperature control is essential for proper processing. The thermometer floats upright in liquids, is sealed in glass and reads from -10 to 222°F (23-106°C). Length: 21cm.
PRICE CODE: 1
LEHMAN HARDWARE & APPLIANCES INC.
P.O. Box 41
4779 Kidron Road
Kidron
OHIO 44636
USA
DAIRY FLOATING THERMOMETERS
PRICE CODE: 1
DAIRY UDYOG
C-229A/230A, Ghatkopar Industrial Estate
L.B.S. Marg, Ghatkopar (W)
BOMBAY 400 086
INDIA
YOGHURT MAKING THERMOMETER This measures temperatures between 43°C and 49°C only. Length: 13cm.
PRICE CODE: 1
WEST METERS LTD
Dept Kom
Western Bank Industrial Estate
WIGTON CA7 9SJ
UK
The following thermometers are available from Lakeland Plastics UK.
(1) MEAT THERMOMETER
(2) PRESERVING THERMOMETER
(3) FOOD PROBE
LAKELAND PLASTICS
38 Alexandra Buildings
WINDERMERE
LA23 1BQ
UK
The following thermometers are available from Electronic Temperature Instruments:
(1) COOKING THERMOMETERS
(2) OVEN THERMOMETERS
(3) FRIDGE THERMOMETERS
(4) PORTABLE CALIBRATOR
(5) GENRAL PURPOSE PROBE 103
(6) HAND-HELD THERMOSENSOR
ELECTRONIC TEMPERATURE INSTRUMENTS
52 Broadwater Street East
WORTHING
BNI4 9AW
UK
Temperature measurement (digital/powered)

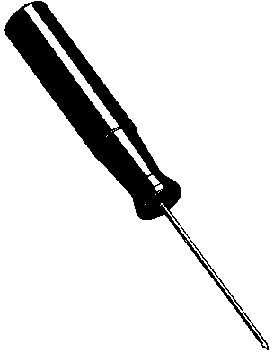

POCKET TEST THERMOMETER
This small, portable thermometer has a probe which is placed into the material to be measured. The temperature range is 4050°C. Length: 15cm.
PRICE CODE: 1
The following thermometers are also available from GBR west:
(1) DIGITAL INDOOR/OUTDOOR THERMOMETER
(2) ELECTRONIC TEST THERMOMETER
(3) ALARM THERMOMETER
WEST METERS LTD
Dept Kom
Western Bank Industrial Estate
WIGTON CA7 9SJ
UK
STICK THERMOMETERS
These thermometers are designed for general purpose temperature measurement. The range includes two probes and one liquid thermometer. The liquid crystal display gives a constant reading, measuring -10°C to 110°C, with an accuracy of 1%.
PRICE CODE: 1
ETI also manufacture the FOOD CHECK THERMOMETER.
ELECTRONIC TEMPERATURE INSTRUMENTS
52 Broadwater Street East
WORTHING
W. Sussex BNI4 9AW
UK
The following thermometers are available from:
(1) THERMOMETER DIGITAL ZEAL
(2) THERMOMETER DIGITEMP
THE NORTHERN MEDIA SUPPLY LTD
Sainsbury Way
HESSLE HU13 9NX
UK
Powered thermometers also manufactured by:
PHILIP HARRIS SCIENTIFIC
Scientific Supplies Co.
618 Western Avenue
Park Royal
LONDON W3 0TE
UKGALLENKAMP EXPRESS
Belton Road West
Loughborough
Leicestershire LE11 0TR
UK
64.1 Weighing equipment

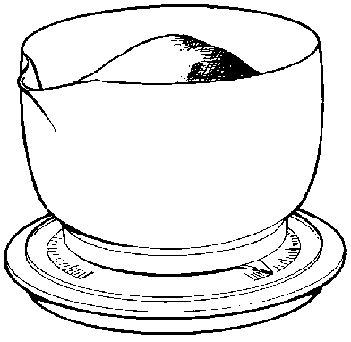

ADD AND WEIGH SCALE
This measures the weight of foods. The add-and-weigh facility allows the continuous weighing of ingredients to be carried out in the same bowl. Measurements are carried out in 259 increments. Capacity: 3kg.
ADD AND WEIGH SCALE
PRICE CODE: 1
COMPACT WALL SCALE
The pan is detachable, and can be closed when not in use. Both imperial and metric measurements are shown on the dial. Weights are measured in 20g increments. Capacity: 3kg.
PRICE CODE: 1
Both the above from:
LAKELAND PLASTICS
38 Alexandra Buildings
WINDERMERE
LA23 1BQ
UK

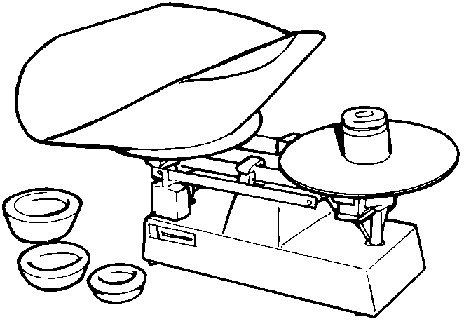

BALANCE OHAUS 1550 SD
This is a two-pan analytical balance for measuring up to 2kg. It comprises a cast alloy base, and features angled beams with centre reading poises, magnetic damping, spring-loaded zero-adjust compensator, and precision-ground knives.
The balance is also equipped with a facility for underbalance weighing. Pan diameter: 15cm.
PRICE CODE: 2
BALANCE SPRING DIAL B14-160
This balance has a hook on which to hang the material to be weighed. The dial is covered in clear plastic and there is a zero adjuster. Weight range: 5-50kg. Length: 26.6cm.
PRICE CODE: 1
Northern Media also supply the following balances:
(1) BALANCE OHAUS 750 SW - a single pan balance, with weighing beams allowing the weighing capacity to be increased.(2) BALANCE SPRING - capable of measuring weights up to 100kg.
(3) BALANCE SPRING TUBULAR FORM can weigh up to 1kg with low friction movement.
THE NORTHERN MEDIA SUPPLY LTD
Sainsbury Way
HESSLE
HU13 9NX
UK
BEAM SCALE BD1
These heavy duty bakery scales are designed for everyday baking. They are hand machined, and chrome plated, complete with a sliding poise for accuracy. Additional extras include weights and a stainless steel scoop. Various versions are available, e.g. Scale: 1lb x ¼ oz (0.45kg x 79).
BEAM SCALE BD1
PRICE CODE: 2
HANGING SCALES S30
These heavy duty, hanging scales have an adjustable tare. Capacity: 30kg x 100g.
PRICE CODE: 1
Heavy duty dual dial scales are also available.
DIETETIC SCALES P200
These compact scales are of use wherever precise controlled food or ingredient portioning is required. Capacity: 200 x 29.
PRICE CODE: 1
The above three scales all from:
MITCHELL & COOPER LTD
Framfield Road
UCKFIELD TN22 5AO2
UK
DAIRY MILK WEIGHING SCALES
These scales are used for weighing milk, and come complete with a tripod and bucket.
PRICE CODE: 1
DAIRY UDYOG
C-229A/230A, Ghatkopar Industrial Estate
L.B.S. Marg, Ghatkopar (W)
BOMBAY 400 086
INDIA
PAN SCALES
Two models are available: one is a simple pan scale with a capacity of up to 4.5kg or 12.5kg (two sizes available). The other is a combined platform/pan scale complete with castors for easy movement. It is capable of weighing up to 1000kg.
PRICE CODE: 3
BALANZAS CONDOR - FR. YEP Y CIA S.A.
Av. Mexico 1535
La Victoria
Lima 13
PERU
2108 COUNTER SCALE
These scales comprise the following: cast iron base, shallow weighing pans, lifting handles and a range of weights. Capacity: 10kg, 20kg.
PRICE CODE: 2

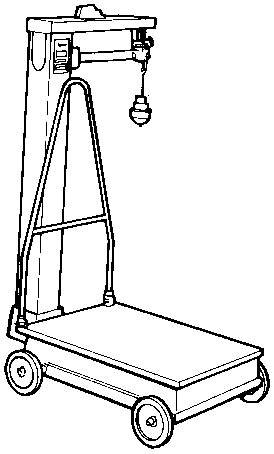

3961 AAG PORTABLE PLATFORM SCALE
3961 AAG PORTABLE PLATFORM SCALE
These scales weigh bulky/large materials such as sacks of flour. The equipment includes a cast iron box, steel knife edges, and a platform-on-wheels. Weight of scales: 250kg. Dimensions: 40.6 x 63.7cm.
PRICE CODE: 3
Both the above scales from:
AVERY ZIMBABWE PVT LTD
P.O. Box 392
HARARE
ZIMBABWE

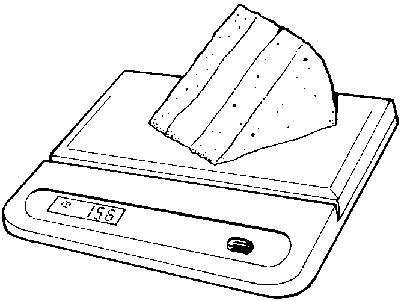

TEFAL ELECTRONIC SCALE
These scales weigh in 19 increments. Any type of bowl or solid food can be placed onto the scales directly. There is also an add-and-weigh feature, and an automatic cut-off. Capacity: 4kg. Dimensions: 15 x 16 x 3cm.
TEFAL ELECTRONIC SCALE
PRICE CODE: 1
LAKELAND PLASTICS
38 Alexandra buildings
WINDERMERE LA23 1BQ
UK
Digital/powered weighing equipment also manufactured by:
FAMIA INDUSTRIAL S.A.
Av. Heroes de la Brena 2790
Ate
Lima 3
PERU
64.2 Measuring cylinders/jugs
MIXER JUGS
This jug can be used as either a measuring jug or a mixing bowl. It is fabricated from heat-resistant polypropylene and can withstand boiling water. The jug is graduated in pints, fluid ounces and millilitres with an overall capacity of 2 litres. 0.57 litres and 1.1 litres (1 or 2 pints) capacity jugs are also available.
PRICE CODE: 1
LAKELAND PLASTICS
38 Alexandra Buildings
WINDERMERE LA23 1BQ
UK
PYREX MEASURING CYLINDERS
This measuring cylinder has a capacity of 10-250ml.
PRICE CODE: 1
THE NORTHERN MEDIA SUPPLY LTD
Sainsbury Way
HESSLE HU13 9NX
UK
64.3 Lactometers
LACTOMETERS
These lactometers are designed for the testing of milk. Two types are available: Desco (15cm length) which can measure at temperatures up to 16°C; and Quenne (18cm length) which can measure at temperatures up to 60°C in 0.5°C increments.
PRICE CODE: 1
LAKSHMI MILKTESTING MACHINERY CO.
A90 Group Industrial Area
Wazirupa
NEW DELHI
110 052
INDIA
LACTOMETER
This measures the density of milk. Length: 15cm.
PRICE CODE: 1
DAIRY UDYOG
C-229A/230A, Ghatkopar Industrial Estate
L.B.S. Marg, Ghatkopar (W)
BOMBAY 400 086
INDIA
DAIRY UDYOG also manufacture the following equipment:
JARS FOR LACTOMETERS
LACTOMETERS - MERCURY FILLED
64.4 Hydrometers
HYDROMETER
This glass hydrometer measures the specific gravity of liquids. It is calibrated at 16°C and has an accuracy of: +/- 0.002 specific gravity. Length: 19cm.
PRICE CODE: 1
THE NORTHERN MEDIA SUPPLY LTD
Sainsbury Way
HESSLE
HU13 9NX
UK
HYDROMETER
This all purpose glass hydrometer has the following specifications: specific gravity: 0.990-1.170. Brix: 0-38% sugar by weight. Alcohol: 0-22% by volume.
PRICE CODE: 1
LEHMAN HARDWARE & APPLIANCES INC.
P.O. Box 41
4779 Kidron Road
Kidron
OHIO 44636
USA
DIGITAL HYDROMETER 6000
This portable, hand-held hydrometer measures relative humidity levels in food storage areas and in equipment such as dough provers. The display indicates the parameter being measured.
A range of hydrometers is available: Humidity = 5% to 95%. Temperature = 10°C to 70°C.
PRICE CODE: 1
ELECTRONIC TEMPERATURE INSTRUMENTS
52 Broadwater Street East
WORTHING
BNI4 9AW
UK
64.5 Butyrometers
BUTYROMETER
This measuring container is used to hold the sample when measuring the fat content of milk. A sulphuric acid reagent and a centrifuge are also required. Range: 0-10%, 0-80% fat.
PRICE CODE: 1
LAKSHMI MILKTESTING MACHINERY CO
A90 Group Industrial Area
Wazirupa
NEW DELHI
110 052
INDIA
The following pieces of equipment are each used with butyrometers:
BUTYROMETER STANDThis is for holding butyrometers and is the shaking type.
PRICE CODE: 1
ALUMINIUM WATER BATH
This water bath keeps butyrometers at the correct temperature.
PRICE CODE: 1
DOUBLE CONICAL RUBBER STOPPERS
These stoppers are designed for the temporary sealing of butyrometers.
PRICE CODE: 1
DAIRY UDYOG
C-229A/230A, Ghatkopar Industrial Estate
L.B.S. Marg, Ghatkopar (W)
BOMBAY 400 086
INDIA
64.6 Testing equipment
METHYLENE BLUE APPARATUS
This is used for testing the amount of live bacteria in milk.
PRICE CODE: 1
DAIRY UDYOG
C-229A/230A, Ghatkopar Industrial Estate
L.B.S. Marg, Ghatkopar (W)
BOMBAY 400 086
INDIA
SAMPLERS FOR MILK
These are ladles which are dipped into milk to obtain a sample.
PRICE CODE: 1
DAIRY UDYOG
C-229A/230A, Ghatkopar Industrial Estate
L.B.S. Marg, Ghatkopar (W)
BOMBAY 400 086
INDIA
PIPETTES FOR MILK, ACID AND ALCOHOL
These are used for obtaining small samples of these liquids. Automatic pipettes are also available.
PRICE CODE: 1
DAIRY UDYOG
C-229A/230A, Ghatkopar Industrial Estate
L.B.S. Marg, Ghatkopar (W)
BOMBAY 400 086
INDIA
BRINE METER
This meter can be used to measure the percentage of salt in a solution.
PRICE CODE: 1
GEBR. RADEMAKER
P.O. Box 81
3640 AB MIJDECHT
NETHERLANDS
Brine meters and other testing equipment also supplied by:
PHILIP HARRIS SCIENTIFIC
Scientific Supplies Co.
618 Western Avenue
Park Royal
LONDON
W3 0TE
UK
GALLENKAMP EXPRESS
Belton Road West
LOUGHBOROUGH
Leicestershire
LE11 0TR
UK
Manual threshers
SINGLE OPERATION PADDY THRESHER
Designed for threshing rice paddy, this manually-operated thresher uses the wheel, sprockets and chain of a bicycle for drive. Throughput: 125kg per hour. Dimensions: 100 x 76 x 66cm.
SINGLE OPERATION PADDY THRESHER
PRICE CODE: 1
TANZANIA ENGINEERING &
MANUFACTURING DESIGN
ORGANIZATION
P.O. Box 6111
Arusha
TANZANIA
OLPAD THRESHER (8 DISC)
This machine has serrated discs of 45cm diameter. A comfortable seat is provided for the operator with a back- and foot-rest while the back and front safety guards eliminate injury risk. The harvest is spread on the threshing floor and the machine is drawn round and round thus separating the grain. An extra racking attachment can be fitted for stirring straw during the threshing operation. Models are available with 11, 14 and 20 discs. Weight 92kg. Throughput: 44 to 106kg per hour.
PRICE CODE: 2
COSSUL & CO PVT LTD
123/367 Industrial Area
Fazalgunj
Kanpur
U.P.
INDIA
ROTARY PADDY THRESHER
This is a pedal-operated threshing machine. Paddy sheaves are held in suitable bunches close to the teeth of the rotation cylinder whilst the cylinder is kept in motion by pedalling. The grains are then separated or combed from the ears by wire teeth provided on the spokes of the cylinder. Throughput: 100-200kg per hour.
PRICE CODE: 1
ROTARY PADDY THRESHER
RAJAN UNIVERSAL EXPORTS (MFRS) P
LTD
Raj Buildings 162, Linghi
Chetty Street, P Bag No 250
MADRAS 600001
INDIA
Manual threshers also manufactured by:
AGRICULTURAL ENGINEERS LIMITED
Ring Road West Industrial Area
P.O. Box 12127
ACCRA-NORTH
GHANACECOCO
P.O. Box 8
Ibaraki City
Osaka 567
JAPANAGRO MACHINERY LTD
P.O. Box 3281
Bush Rod Island
Monrovia
LIBERIA
Powered threshers currently available
|
Commodity |
Country |
Manufacturer |
Equipment |
Throughput (kg per hour) |
Price code |
Power (kW) |
|
Cereals |
Philippines |
P.I. Farm Products Inc. |
PALAY MINI THRESHER |
200 |
2 |
10.4-12 |
|
Nigeria |
Institute for Agricultural Research |
GROUNDNUT THRESHER |
120 |
2 |
4 |
|
|
India |
Dandekar Brothers & Co. |
MULTI-CROP THRESHER |
300-400 |
3 |
|
|
|
Netherlands |
Votex Tropical |
HIGH SPEED THRESHER |
300-2000 |
4 |
7 |
|
|
Rice |
India |
Kisan Krishi Yantra Udyog |
PADDY THRESHER |
300-500 |
3 |
2 |
|
Indonesia |
P.T. Rutan Machinery Trading Co. |
PORTABLE THRESHER |
400-600 |
3 |
|
|
|
Philippines |
JCCE Industries |
AXIAL FLOW THRESHER |
800-1000 |
4 |
7.5 |
|
|
Sorghum |
Botswana |
Rural Industries Innovation Centre |
SORGHUM THRESHER |
210 |
3 |
|
|
Costa Rica |
Universidad de Costa Rica |
THRESHER FOR BEANS |
50 |
2 |
3.7 |
|
|
Wheat |
India |
Madho Mechanical Works |
MADHO WHEAT THRESHER |
300 |
3 |
3.7 |
|
Standard Agricultural Eng. Co. |
AUTOMATIC FEED WHEAT THRESHER |
800-1000 |
4 |
15 |
||
|
Pakistan |
United Steel Mills Ltd |
WHEAT THRESHER |
740 |
3 |
11 |
WATER TEST KIT LOVIBOND AF 357
This kit is designed for the analysis of free and combined chlorine, pH and fluoride. The test methods are colorimetric using the Lovibond 2000 comparator and accessories. The equipment comes supplied with all the necessary reagents, glassware and instructions in a plastic case.
PRICE CODE: 2
THE NORTHERN MEDIA SUPPLY LTD
Sainsbury Way
HESSLE HU13 9NX
UK
PORTABLE WATER SOFTENER
This portable two-bed water dispenser consists of two FRP/PVC cylinders filled with cation and anion exchange resins. It is mounted on an electrostatically panelled frame which has a valve block. The treated water has dissolved solids below 5ppm, pH 7.5-9 and CO2 levels below 5ppm.
PRICE CODE: 3
WATRION WATER & FILTER
ENGINEERING P LTD
34A Rameshwar
4 Bungalow Road, Andheri (W)
BOMBAY 400 058
INDIA
UV WATER DISINFECTION UNIT
This is used to treat water by destroying bacteria using ultra-violet light. It uses a single phase, 220V 50Hz power supply, or alternatively it can be battery-operated. Water flow is at 750 litres per hour.
PRICE CODE: 1
WATER ASSOCIATES & EQUIPMENT
P.O. Box HG 423
Highlands
HARARE
ZIMBABWE
Water treatment equipment also manufactured by:
PHILIP HARRIS SCIENTIFIC
Scientific Supplies Co.
618 Western Avenue
Park Royal
LONDON W3 0TE
UKGALLENKAMP EXPRESS
Belton Road West
Loughborough
Leicestershire LE11 0TR
UKUTIL S.A
Rua 17 Febrero 156
Bonsucesso
21040 SAO PAULO SP
BRAZILPENDAR ENVIRONMENTAL
P.O. Box 22
Hampshire Industrial Estate
BRIDGWATER TA6 3NT
UKWATER ENGINEERING (PVT) LTD
P.O. Box 8507
Belmont
BULAWAYO
ZIMBABWEMERCK LTD
Broom Road
Parkstone
Poole
Dorset BH12 4NN
UK
Manual winnowers
HAND-OPERATED WINNOWER UNATA 5100
This is a lightweight, easy to handle winnower which can separate seed into three outlets: whole seeds, crushed seeds, and pellicles/specks of dust. Throughput: 1m³ per hour, seeds ready for market. Dimensions: length 99 x width 64 x height 121 cm.
PRICE CODE: 2
UNION FOR APPROPRIATE TECHNICAL
ASSISTANCE
G. Van den Heuvelstraat 131
3140
RAMSEL
BELGIUM
CYCLE WINNOWER
This-machine can be used for separating the grain from the chaff when a favourable breeze fails. The blades have a diameter of 120cm and are fitted on a shaft running on two ballbearing races. There are two free wheels in the gear train along with a flywheel. A seat is provided for the operator and the machine is pedal-driven. The frame is all steel, and up to four people can winnow at a time. Weight: 80kg. Throughput: 1500 to 2000kg per day.
PRICE CODE: 1
COSSUL & CO. PVT LTD
123/367 industrial Area
Fazalgunj
Kanpur
U.P.
INDIA
ALL STEEL WINNOWER & COFFEE SIEVE
This separates the dust and shells from hulled coffee. The coffee is first fed into the hopper which is fitted with a feed regulating slide and a feed roller to distribute the coffee evenly across an air current. The mixture falls vertically through the horizontal air blast and loose husks and dust are discharged. Dust-free coffee then falls onto an oscillating sieve which has two grids; upper and bottom. The upper holds back unshelled coffee, and the bottom retains shelled coffee but discharges shell and grit. The machine uses a 1.5kW (2hp) motor. Throughput: 907kg per hour.
ALL STEEL WINNOWER & COFFEE SIEVE
PRICE CODE: 3
JOHN GORDON & CO. (ENGINEERS) LTD
Gordon House
Bower Hill
EPPING
CM 16 7AG
UK
Hand-operated winnowers currently available
|
Country |
Manufacturer |
Equipment name |
Throughput (kg per hour) |
Price code |
|
Belgium |
Union for Appropriate Technical Assistance |
HAND-OPERATED WINNOWER UNATA 5100 |
1m³ |
2 |
|
HAND-OPERATED WINNOWER KIT 5101 |
|
2 |
||
|
UK |
John Gordon & Co. (Engineers) Ltd |
ALL STEEL WINNOWER & COFFEE SIEVE |
907 |
3 |
|
India |
Kisan Krishi Yantra Udyog |
GRADER-CUM-WINNOWER |
400-500 |
2 |
|
Cossul & Co. Pvt Ltd |
CYCLE WINNOWER |
188-250 |
2 |
|
|
HAND WINNOWER |
62-100 |
1 |
||
|
Sri Lanka |
Nawinne Agric. Implements Manu. Co. |
HAND-OPERATED WINNOWING FAN |
0.0045m³ |
1 |
Powered winnowers
WINNOWER
Designed for paddy, this is a compact freestanding model, fabricated from mild steel and operated by cranking a handle, which is connected by pulley and V-belt to the fan.
WINNOWER
PRICE CODE: 1
COMILLA CO-OPERATIVE KARKHANA
LTD
Ranir Bazar
P.O. Box 12
Comilla
BANGLADESH
CC-1 CATADOR WINNOWER FOR SAMPLES
This winnower separates the loose shells from shelled coffee quickly. Once the machine has been set into motion material is fed into the hopper. Shelled coffee is discharged at the outlet below the hopper, whilst husks and dirt are discharged from a separate outlet. A 30W motor drives the machine. Throughput: 15-45kg per hour. Height 50cm.
CC-1 CATADOR WINNOWER FOR SAMPLE
PRICE CODE: 3
JOHN GORDON & CO. (ENGINEERS) LTD
Gordon House
Bower Hill
EPPING CM16 7AG
UK
PENKHA/HUSK SEPERATOR
This machine will separate the paddy husk from dehusked rice. Both the paddy and husk are fed into a shaking sieve mounted on a husk separator. The sieve separates the broken parts and the husk powder from the rice. The machine uses an aspiration fan and is made from heavy duty steel sheets. Air control dampers, with fine adjustments, are provided for regulating the air flow. Throughput: 250-3500kg per hour. Sizes available: 61-183cm.
PENKHA/HUSK SEPERATOR
PRICE CODE: 3
DEVRAJ & CO.
Krishan Sudama Marg
Firozpur City
PUNJAB
INDIA
Powered winnowers currently available
|
Country |
Manufacturer |
Equipment name |
Throughput (kg per hour) |
Price code |
|
Bangladesh |
Comilla Co-operative Karkhana Ltd |
WINNOWER |
|
2 |
|
WINNOWING MACHINE |
|
2 |
||
|
India |
Devraj & Company |
PENKHA/HUSK SEPARATOR |
250-3500 |
3 |
|
DEVRAJ PADDY SEPARATOR |
500-3000 |
1 |
||
|
Dandekar Machine Works Ltd |
HUSK/RICE SEPARATOR |
|
2 |
|
|
Japan |
Cecoco |
HAND GRAIN WINNOWER |
650 |
1 |
|
Nigeria |
Department of Agricultural Engineering |
MULTI-GRAIN WINNOWER |
466 |
1 |
|
Peru |
Herrandina |
GRAIN WINNOWER (AVENTADORA PARA GRANOS) |
200-300 |
1 |
|
Sri Lanka |
Mahaweli Agro-Mech Industrial Complex |
WINNOWING FAN |
|
1 |
|
Sathyawadi Motors &Transporters |
WINNOWING FAN |
|
1 |
|
|
UK |
Blair Engineering Ltd |
HAND WINNOWER AND GRAIN CLEANER |
1000 |
1 |
|
John Gordon & Co. (Engineers) Ltd |
CC-1 CATADOR WINNOWER FOR SAMPLES |
15-45 |
2 |
|
|
Zimbabwe |
G North & Son (Pvt) Ltd |
WINNOWER |
3 bags/h |
2 |
MULTI-GRAIN WINNOWER
This prototype model uses a centrifugal blower fan to separate the grain from the chaff. The improved model works at about 99% winnowing efficiency. An integral motor is included and the machine is freestanding. Throughput: 466kg per hour.
MULTI-GRAIN WINNOWER
PRICE CODE: 3
DEPARTMENT OF AGRICULTURAL ENG.
Faculty of Engineering
University of Nigeria
Nsukka
NIGERIA
SOYA MILK EQUIPMENT
This stainless steel equipment is designed for the production of soya milk. From one 60kg bag of soya, the machine can produce 750 litres of milk. Heating is by coiled elements in a stainless steel tank. Other equipment such as a separator, cooler and packaging machines can be connected. Throughput: 62.5 litres per hour. Dimensions: 165 x 157 x 60 cm.
PRICE CODE: 4
ORDEPAR INDUSTRIA DE MAQUINAS
Proloita Ltda
Rua Mossoro 421
36020 LONDRINA
PARANA
BRAZIL
MANUAL CAN OPENER
This has a circular blade for opening cans. The unit clamps onto work surfaces and opens cans between 2 and 40cm in height. It can be easily adjusted and the blade and the drive wheel can be easily replaced.
PRICE CODE: 2
ROSEN & ROBBERT OHHG
MASCHINENFABRIK
Hilsmannweg 23
Postfach 2230
ARNSBERG 1
D 5760
GERMANY
POPCORN MAKER
This model is designed for medium scale popcorn production. 100g of oil is heated in the machine, corn (maize) is poured in and it is heated. When 75% is roasted, the lid automatically opens slightly enabling the popped corn to fall out and the remaining corn to be popped. The temperature is controlled by thermostat. Counter and floor standing models are available. Power requirement: 220V. Capacity: 4539 corn per charge.
PRICE CODE: 3
RAJAN UNIVERSAL EXPORTS (MFRS) P
LTD
Raj Buildings 162
Lingi Chetty Street
P. Bag 250
Madras 600 001
INDIA
CORN POPPER, ROTARY TYPE
This machine is designed for small scale popcorn production. It has a concave bottom that keeps the unpopped corn directly over the heat. It also has a contoured propellor which sweeps the base to roll the kernels and prevent them scorching. Capacity: 3.4 fires.
PRICE CODE: 1
LEHMAN HARDWARE & APPLIANCES INC.
P.O. Box 41
4779 Kidron Road
Kidron
OHIO 44636
USA
SUGAR COTTON MACHINE
This machine produces spun sugar (candy floss). It consists of a revolving stainless steel drum within which a fine nozzle produces the strands of sugar.
PRICE CODE: 2
RAJAN UNIVERSAL EXPORTS (MFRS) P
LTD
Raj Buildings 162
Linghi Chetty Street
P. Bag 250
MADRAS 600 001
INDIA
MOBILE COOLING RACK
This rack is for cooling baked foods. Dimensions: 45.7 x 35.6 x 152.4cm.
PRICE CODE: 1
MR FABRICATION AND SERVICING CORP.
Carmelo & Bauermann Compound
EDSA
Guadalupe
Makati
Metro Manila
PHILIPPINES
ICE MAKING EQUIPMENT
ICE CUBE MACHINE SD SERIES: SD22-SD60
This machine has inner components made from plastic. The system consists of an hermetically sealed compressor with a large condensor (air- or water-cooled). The ice production cycle is fully automatic and is controlled by a timer. Capacity: 1250 or 3250 ice cubes/day. Dimensions: Weight 32 x Depth 27 x Height 56cm.
PRICE CODE: 2
ICE FLAKERS
This produces dry, compact ice flakes. Throughput: 150-155 kg per 24 hours. Dimensions: weight 104.5 x depth 55 x height 109.5cm.
PRICE CODE: 4
PORKKA (UK) LTD
Unit 5, Olds Approach
Tolpits Lane
RICKMANSWORTH
WD1 8TD
UK
